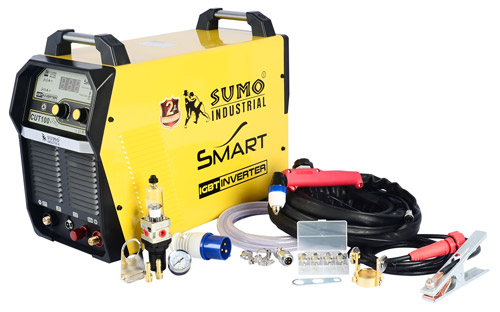

Plasma Cutting Machine CUT-100 SUMO
Inverter plasma cutting machine can be cut at a thickness of up to 35 mm. and cut beautifully at a thickness of about 16 mm. No more decoration time. No need to replace the cutting head frequently.
Description:
- Plasma Cutting Machine Model CUT-100 SUMO
Plasma Cutting Machine Inverter system can cut various workpieces easily and quickly. The workpiece is beautifully cut without the need for additional decoration, and has a system designed to operate without changing the cutting head frequently.
Accessories

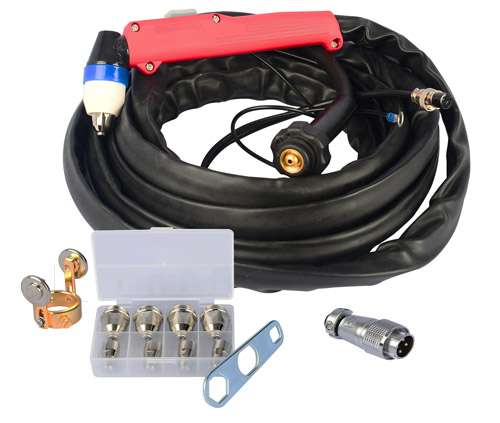

Plasma Cutting Kit /Plasma Turch

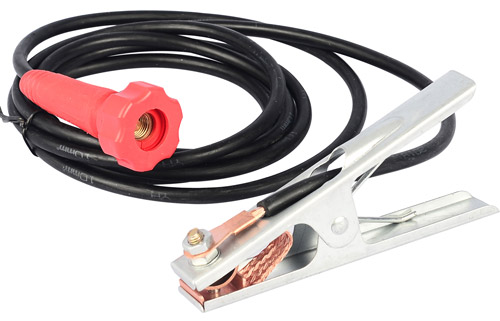

Grounding Pliers Set / Earth Clamp

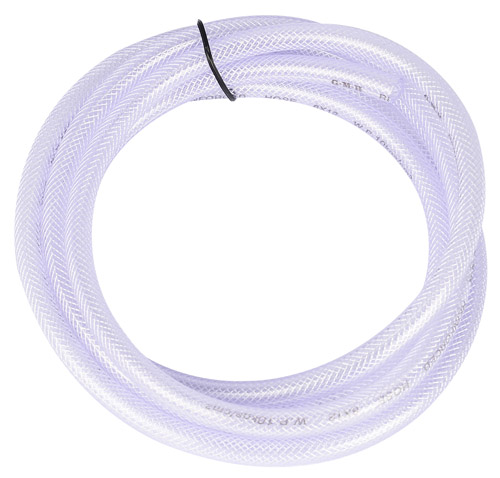

Air Braided PVC/PVC HOSE
Air Compression Release Valve
Power Plugs / PowerPlug
Technical Data
| Power Voltage (V) | AC2V ±15% |
| Rated Input Power (KVA)17 | 17A |
| Rated output voltage | 120V |
| No-load voltage | 287V |
| Rated input current (A) | 17A |
| Frequency Frequency (Hz) | 50Hz |
| Rated output current | 30-100A |
| Efficiency | 85% |
| Duty Cycle Capability | 60% |
| Power Factor | 0.93 |
| Protection grade protection level | IP21 |
| Class of Insulation | F |
| Weight | 19.3Kg |
| Dimension (mm) | 515x260x480 |
Tips & Tricks
- For maximum cutting efficiency, it should be connected to a 2.5sqmm or more power cord and used with sumo air pump.
- Air volume 150 l/min
- The air pressure should be set to 4-5 bar.
